Trunnion Mounted Ball Valve
|
Top Entry Ball Valve |
|
|
Size Range |
2”~56” (DN50~DN1400) |
|
Class Range |
150Lb~2500Lb (PN10~PN420) |
|
Design Standard |
API 6D, API 608, ISO 17292, ASME B16.34 |
|
End Connection |
RF/ RTJ - ASME B16.5 / B16.47; BW – ASME B16.25 |
|
F - F Dimension |
ASME B16.10 |
|
Construction |
FB/RB; 2PCS Body; Soft/Metal Seat; Floating/Trunnion Mounted |
|
Design Features |
DBB; Relief Cavity; Emergency Sealant Injection; Vent & Drain; Antistatic; Blowout Proof Stem; Fire Safe (As Per API 607) |
|
Special |
NACE; Cryogenic; Extended Stem; Fugitive Emission; Lip Seal |
|
Material |
Forged & Cast CS, LTCS, SS, AS and Special Steel |
|
Applications |
Oil & Gas, Chemicals, Waters, Power, Marine, Mining, etc. |
|

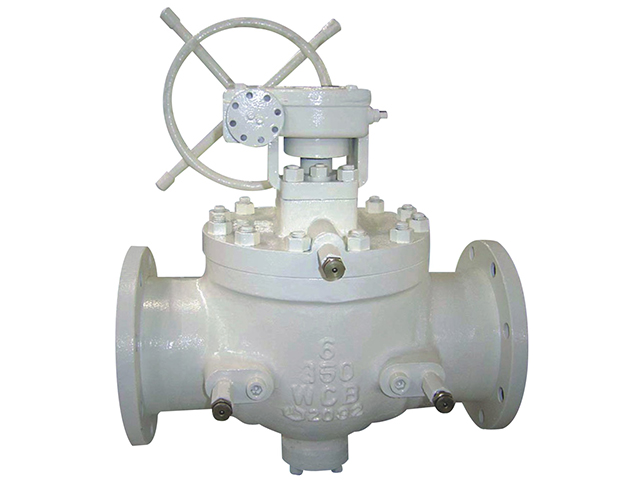

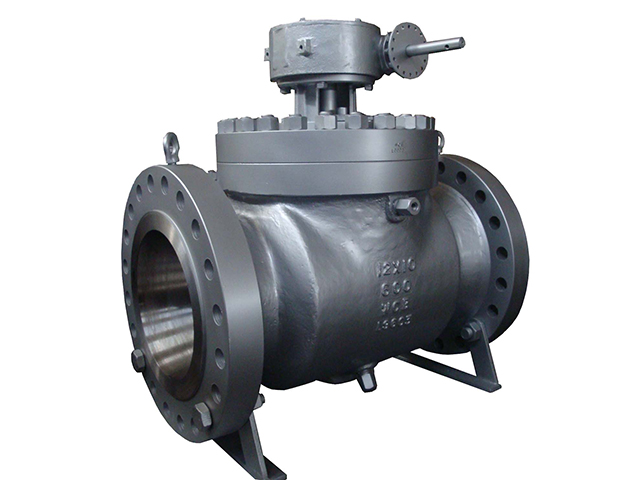

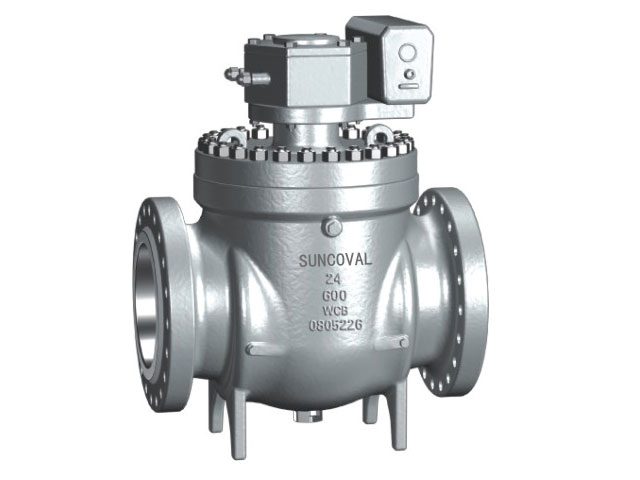

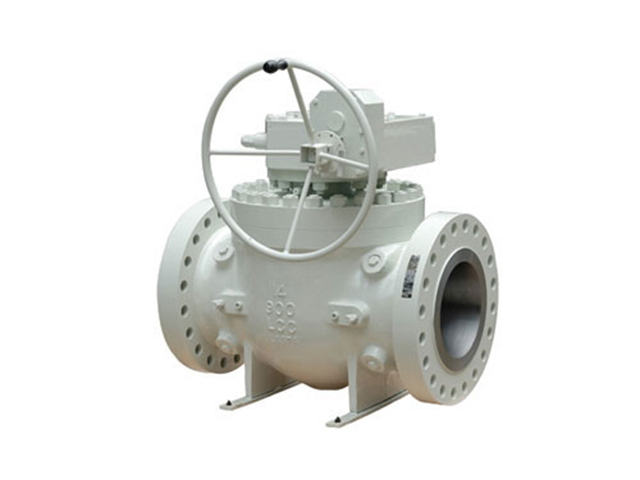

Sample Photos |
As follows |
